USBMIX6
6 Channel USB Recording Mixer w/Fx

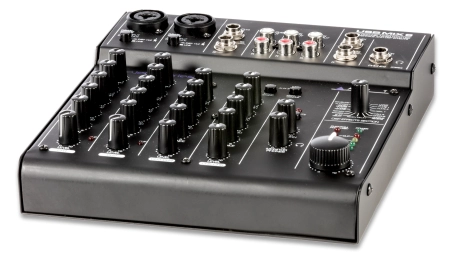

The USB Mix 6 is an analog mixer with onboard effects and an integrated digital audio interface. Its designed for home and mobile recording, and is flexible enough for live use with a soloist or small ensemble.
The mixer section has six channels. Channels 1 and 2 have combo inputs that can accept mic, line, or instrument signals. Channels 3-4 and 5-6 are grouped in stereo pairs, and all channels have 2 band EQ for tone shaping. Theres also a stereo auxiliary input that can be assigned to the main or monitor bus for additional flexibility.
Enhance your mix with one of sixteen selectable effects including reverbs, delays, and modulation. Each channel or stereo pair has an independent FX Send, and the master section has a global FX Return control and FX Mute button.

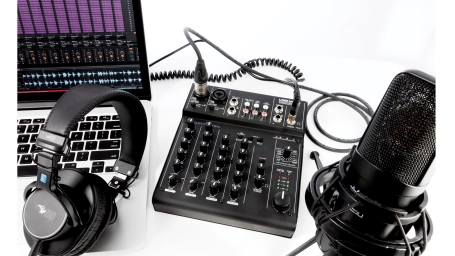

You can record the mixer output over the stereo audio interface, and the USB playback can be routed to the monitor output or to channels 5 and 6.
The USB Mix 6 combines the familiar workflow of a traditional mixer, the convenience of a multi-effect processor, and easy digital integration. Its a compact, powerful, and versatile hub for project studios, mobile recording, and small stages.
Features
- High Performance Low Noise Design
- Six Discrete Inputs (2 x Mic / 2 x Stereo Line Level)
- Switchable +48v Phantom Power (CH1 & CH2)
- High and Low EQ on Each Input Channel
- Integrated Stereo Multi-FX with Adjustable Sends & Returns
- Stereo LED Metering
- Independent Level Controls for Main and Headphone/Monitor Outputs
- Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
Specifications
| Inputs | XLR & 1/4" Balanced Combo Jack (CH 1 & CH2) 1/4" TRS Balanced (CH3 & CH4) RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L & R) |
| Outputs | 1/4" TRS Balanced Main Mix Outputs 1/4" TRS Stereo Output & Monitor Outputs RCA Loop Out (L & R) |
| Headphones | 1/8" Headset Output |
| Maximum Input Level | +4 dBu (Mic), +20 dBu (1/4" Input) |
| Maximum Output Level | +15 dBu Main Mix Outputs |
| Maximum Gain | >54 dB (Mic), >39 dB (Instrument), 10 dB (Stereo Monitor & Line Out) |
| Total Harmonic Distortion | <0.02% @ 1 kHz |
| Signal to Noise Ratio | >90 dB Typical (Ref 0dBu) |
| Phantom Power | Switch selectable, +48 V DC, filtered, current limited |
| Connectivity | USB Class Compliant plug-and-play Mac / PC Interface |
| Resolution | 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz |

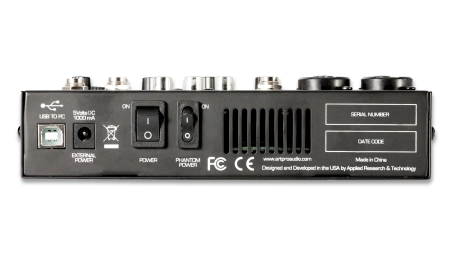

| Power Requirements | Via USB or 5VDC @ 500mA |
| Dimensions (HWD) | 1.9″ x 7.4″ x 8.5″ (4.7 cm x 18.6 cm x 21.5 cm) |
| Weight | 3.24 lbs / 1.47 kg |
| Note | 0 dBu = 0.775Vrms |
Specifications subject to change without notice
