USBIV
4 In/Out USB Audio Interface
"there can be no argument that this interface dominates price to performance in its class" -Tape Op

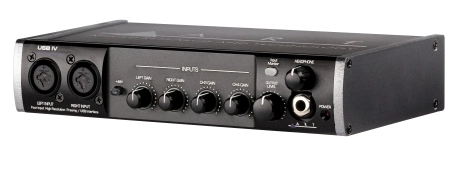

With four input channels and class-leading 32-bit, 192 kHz conversion, the USB IV is ARTs most advanced digital audio interface.

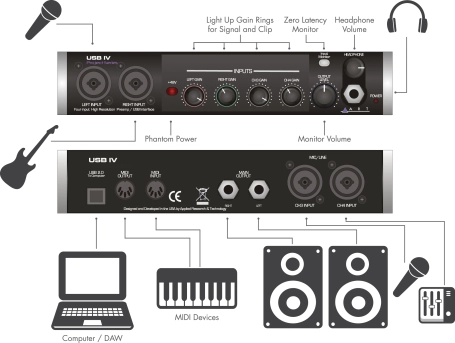

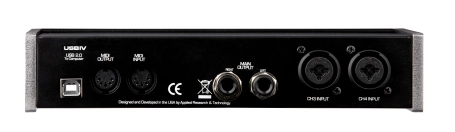

It has two mic / instrument and two mic / line inputs, all with combo jacks that can accept XLR and 1/4 connections. Indicator rings around the input gain controls turn green to indicate optimum signal levels, and red to indicate peaking. The interface also features switchable phantom power, balanced 1/4 outputs, a dedicated headphone jack, and full-sized MIDI in and out connectors.
The USB IV is bus-powered, class compliant, and bundled with Cubase LE recording software from Steinberg. It offers extended connectivity and superior fidelity for home and project studios, and its compact size and rugged enclosure make it a convenient tool for mobile recording.
Download Troubleshooting Guide
Features
- High Quality A / D to D / A convertors
- Sample rates from 44.1k to 192kHz
- Low latency ASIO and WDM driver
- Transformer isolated outputs
- Front panel input monitoring switch
- Low noise discrete mic preamps
- High Z instrument inputs
- Zero latency monitoring
- Front panel headphone output
- MIDI input / MIDI output
Specifications
| Inputs | 2x XLR/1/4" combo jacks, USB 1.0/2.0, MIDI DIN 5 |
| Outputs | Impedance Balanced 1/4", MIDI output |
| Headphones | 1/4" |
| Input Impedance | >1M Ω 1/4" input >7k Ω XLR input |
| Output Impedance | 300 Ω (balanced 1/4") 32 Ω (headphone stereo 1/4") |
| Maximum Input Level | +15 dBu Inst.,19 dBu Bal. Line, +3.5 dBu mic |
| Maximum Output Level | +8 dBu (CH1/2), +6.5 dBu (CH3/4) |
| Frequency Response | 20 Hz - 20 KHz (+/- 1dB) |
| Total Harmonic Distortion | <0.002% 20 - 20k, ADC-USB USB-DAC |
| Equivalent Input Noise | -128 dBu typical (XLR balanced, gain @ maximum) |
| Signal to Noise Ratio | >ADC: 115 dB, DAC: 110 dB |
| CMRR | >87 dB (mic), 60 dB (line) |
| Channel Separation | >75 dB |
| Phantom Power | +48 dB switch selectable, +48Volts DC, filtered, current limited |
| Connectivity | USB class compliant plug-and play Mac and PC interface |
| Resolution | 32 Bit, 44.1 kHz to 192 kHz, USB selectable from computer |
| Power Requirements | USB 2.0, 500 mA |
| Dimensions (HWD) | 8.75" x 1.75" x 6.2" (22.2 cm x 4.4 cm x 15.7 cm) |
| Weight | 2.15 lbs. / .974kg |
| Note | 0 dBu = 0.775Vrms |
Specifications subject to change without notice
