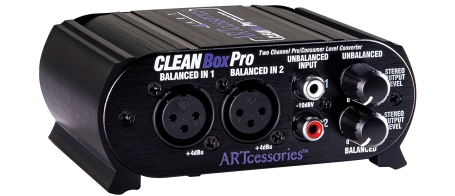

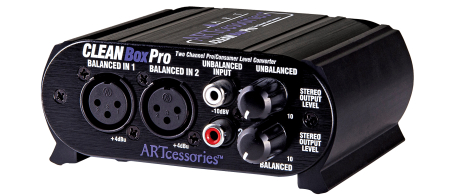

CleanBox Pro
Balanced / Unbalanced Level Convertor
The CleanBox Pro is a convenient solution for connecting consumer A/V and professional audio equipment.

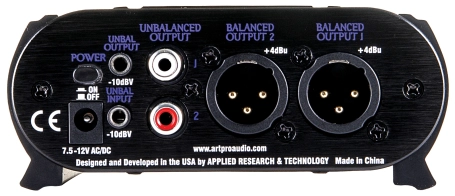

It provides two channels of unbalanced-to-balanced level conversion, and two channels of balanced-to-unbalanced level conversion. The balanced signals use XLR connectors, the unbalanced signals use stereo RCA and 1/8” TRS jacks, and there are independent volume controls for both the balanced and unbalanced output levels.
Balanced lines offer increased immunity to external electrical noise and hum, and are the preferred method of connecting audio gear, especially over long cable runs. Need to get the analog output from a laptop, phone, or disc player to a mixer or PA system, or vice-versa? This is your box.
Please note that, unlike other CleanBox models, the CleanBox Pro is not a transformer / isolator. If you need a solution to eliminate ground loops, check out the CleanBox II and DTI.
Features
- 2-Channel Balanced / Unbalanced Level Convertor
- 2x XLR Inputs and Outputs
- Stereo RCA and 1/8" Inputs and Outputs
- Independent Level Controls for Balanced / Unbalanced Outputs
- Power Adapter Included
Specifications
| Active or Passive | Passive |
| Inputs | 2x Balanced / Unbalanced 1/4" TRS |
| Outputs | 2x Balanced / Unbalanced 1/4" TRS |
| Frequency Response | 20Hz to 20kHz, +/-1 dB |
| Signal to Noise Ratio | > 90dB |
| Total Harmonic Distortion | <0.1% @ 1 kHz |
| Power Requirements | 7.5-12 V AC/DC, <150 m |
| Dimensions (HWD) | 4.5" x 2.875" x 1.5" 11.4 cm x 7.3 cm x 3.8 cm |
| Weight | 0.9 lbs / 408 g |
Specifications subject to change without notice
