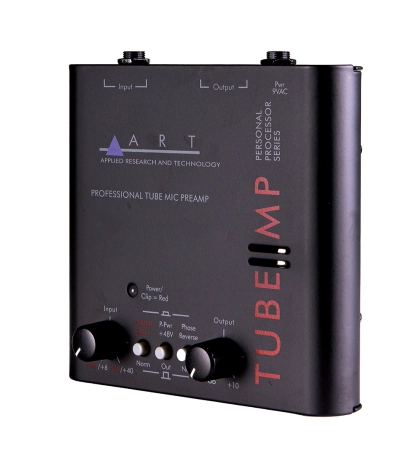

Tube MP - The Original
Tube Preamp
The Tube MP is the worlds most popular external microphone preamp.
It was originally released in 1995, and made the authentic warmth of a real tube preamp accessible to all recording musicians. It was recognized with a nomination for Outstanding Technical Achievement at the prestigious TEC Awards, and remains one of ARTs best known and most popular products.
Its a natural choice to extend the functionality of your audio interface, offering a different character from your onboard mic pres. With a genuine 12AX7 tube and up to 60 dB of input gain, you can add harmonics and gentle saturation to help a track stand out in a mix, or get aggressive for creative effects. Its also an exceptional direct box that enhances any instrument, adding fullness for thick, round tones.

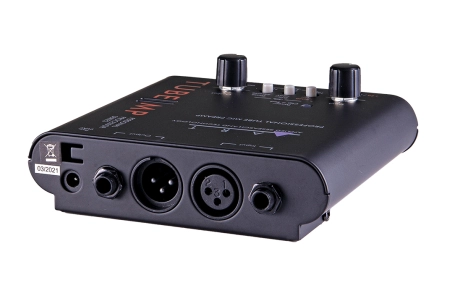

Compact and easy to use, it features XLR and 1/4 connections, variable input and output gain, and switches for phantom power, boost, and phase reversal.
Hear for yourself why engineers around the world have warmed up their tracks for three decades with the Tube MP.
Features
- Provides Superior Preamplification for:
Microphones, Instruments and Line Level Sources - Hand Selected 12AX7a Provides 70dB of Gain Smooth,
Warm and Fat Sound Quality - Variable Input and Output Gain Controls
- Excellent as a Tube DI
- XLR and 1/4″ Inputs and Outputs
- +48 volts Phantom Power
- Phase Reversal Switch
- Superior Sonic Performance to On-Board Preamps
- TEC-Award Nominated Design
- Portable, All Steel Construction
Specifications
| Inputs | XLR (Balanced), 1/4" TS |
| Outputs | XLR (Balanced), 1/4" TS |
| Input Impedance | 2kΩ, 840kΩ |
| Output Impedance | 600Ω, 300Ω |
| Maximum Input Level | +14dBu - +22dbu |
| Maximum Output Level | +22dBu - 28dbu |
| Maximum Gain | 54dB - 79dB |
| Frequency Response | 10Hz to 30kHz, +/-.5dB |
| Total Harmonic Distortion | <0.1% (typical) |
| Equivalent Input Noise | -129dBu (A weighted), -105dBu (A weighted) |
| CMRR | >75dB (Typical @ 1kHz) |
| Power Requirements | Input 100-240V AC~50/60Hz Output 12V DC @ ≥ 0800mA |
| Dimensions | 2.0" x 5.5" x 5.0" (5.08cm x 13.97cm x 12.7cm) |
| Weight | 1.5lbs. / .680kg |
Specifications subject to change without notice
