SOLO MPA
Multivoice Tube Preamp
“Its well-curated selection of creative tone-shaping options includes features rarely found in mic-pre-equipped interfac-es or many stand-alone preamps, budget or otherwise.” -Recording (LINK NOT AVAILABLE)
The ART Solo Series is a range of highly affordable, all-analog, single-channel processors. They offer flexible tone shaping with intuitive controls and the unmistakable sound of real tubes.
The Solo MPA is a multivoice mic preamp that offers both a clean solid-state and warm tube signal path. The Voice knob lets you combine the two for the perfect blend of clarity and character.
Balance lows and highs with the Tilt EQ, and use the sweepable Low Cut filter to eliminate rumble and tighten bass. The variable microphone impedance lets you tailor the preamp response to your mic for additional tonal options.

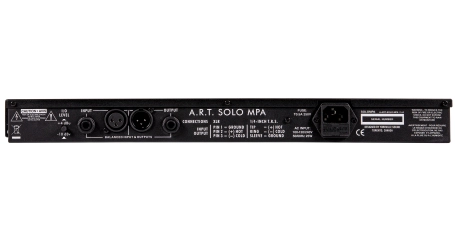

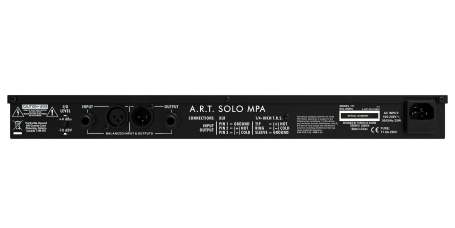

It also features a 20 dB boost, phase reversal, and phantom power, with controls for input and output gain and a VU meter for visibility. The rear panel has XLR and 1/4” connections, and the front panel has a 1/4” High Z input so you can use the Solo MPA as an instrument DI.
Expand your recording setup with a versatile character preamp that offers the best of both worlds: clean, saturated, and everything in between.
Features
- Adjustable input impedance (600 to 80K ohms)
- Flexible Tilt EQ
- Hand selected 12AX7 Tube
- Tunable Lowcut Filter
- Variable Voice Tube/Solid State Control
- Front accessible meter trim
- Discrete class A FET input microphone preamplifier
- Low THD
- Wide frequency response
- Front mounted Instrument/DI Input
- Very high input impedance
- +4dBu/-10dBV output level selection
Specifications
| Input Impedance | 600-80KΩ adjustable (XLR), >800kΩ (Instrument), +27dBu (XLR) |
| Output Impedance | < 47Ω (XLR) |
| Maximum Input Level | +19dBu (XLR) |
| Maximum Gain | 75dB |
| Frequency Response | 15Hz - 50kHz (+0, -1dB) |
| Equivalent Input Noise | -129dBu (XLR, “A” weighted) |
| CMRR | >90dB THD <0.005% (Typical |
| Power Requirements | 100-120V 60Hz / 220-240V 50Hz |
| Dimensions (HWD) | 5” x 20.4” x 7.44” 12.6cm x 51.8cm x 18.9cm |
| Weight | 5.6 lb / 2.5kg |
Specifications subject to change without notice
