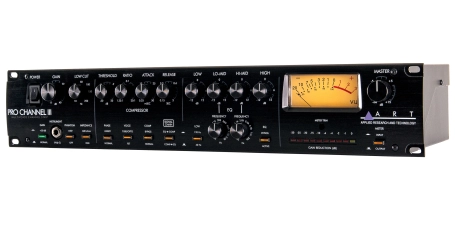

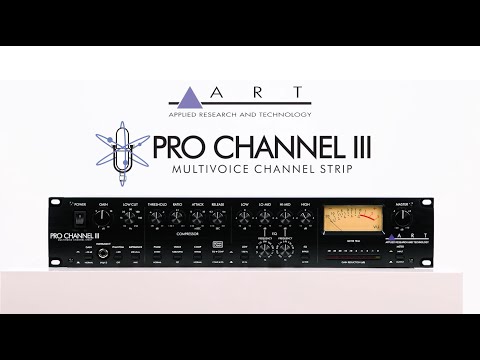

Pro Channel III
Multivoice Channel Strip
The Pro Channel III is a fully-featured channel strip with selectable mic impedance, two compression voicings, and semi-parametric EQ.
New to this version, the compressor has both Tube/Opto and FET modes for smooth or punchy dynamic control. The compressor and EQ sections can now be reordered at the touch of a button, and the front panel has been streamlined for a faster, simpler workflow.
The mic preamp features a discrete FET input stage and up to 60 dB of preamp gain, with a variable low cut filter to eliminate rumble and tighten bass.
The EQ section offers a switchable low shelf frequency, variable low-mid and high-mid frequencies with over 4 octaves of range per band, and a 12 kHz high shelf.

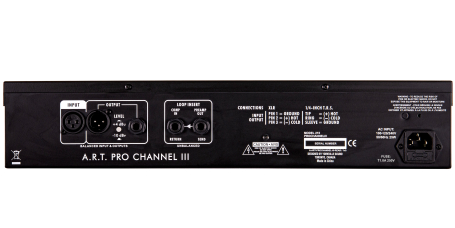

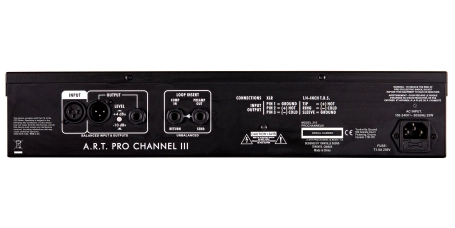

The Pro Channel III is also a versatile instrument DI. Connecting to the front 1/4 input will override the rear XLR input so you can record direct tracks without disconnecting your mic or line signal.
Designed for recording musicians seeking a versatile character preamp with real tube warmth, the Pro Channel III offers the flexibility and fidelity to sculpt and enhance any source.
Features
- Class A FET Microphone Preamp
- Selectable Microphone Impedance
- 1/4" High Z Input on Front Panel
- Compressor and EQ Sections with Switchable Order and Independent Bypass
- Tube/Opto and FET Compressor Voicings
- 4-Band Semi-Parametric EQ and Variable Low Cut Filter
- Insert Point after Preamp Stage
- +4 dBu or -10 dBv Operation
- Universal Internal Power Supply
Specifications
| Input Impedance | 600Ω / 47 kΩ (XLR) >800 kΩ (Instrument) 7.5 kΩ (Insert) |
| Output Impedance | < 47Ω (XLR) |
| Maximum Input Level | +22 dBu (+4dBu Mode) +13 dBu (-10dBV Mode) Balanced |
| Maximum Output Level | +26dBu (Balanced), +20dBu (Unbalanced) |
| Maximum Gain | 40dB Variable Input Gain 20dB Switchable Boost , 15dB Variable Output Gain |
| Frequency Response | 12Hz to 100kHz (+0, -1dB) |
| Total Harmonic Distortion | >90dB |
| Equivalent Input Noise | -128dBu (Mic / Line) -109dBu (Instrument) |
| CMRR | >90dB |
| Power Requirements | 100 – 240V 50Hz / 60 Hz 25W |
| Dimensions (HWD) | 3.5” x 19” x 9.2”, 8.9cm x 48.3cm x 23.3cm |
| Weight | 10.5lbs / 4.76kg |
Specifications subject to change without notice
