MACROMIX
4-Channel Line Mixer
The MacroMix is a four-channel line mixer.

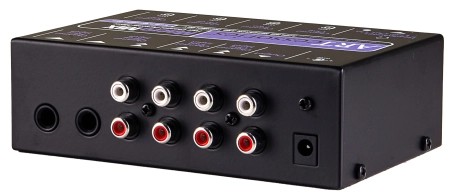

Channels 1 and 2 have stereo RCA inputs, channel 4 has a 1/4 input, and channel 3 has both. Its ideal for connecting multiple sources such as CD and DVD players, phono preamps and DJ mixers, or cassette decks.

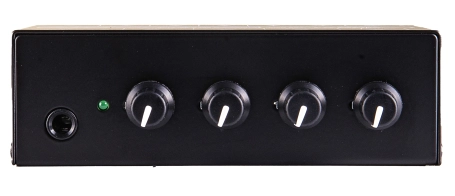

Each channel has an independent volume control, and the mix is sent to a stereo RCA output and a stereo 1/4 headphone / line output for monitoring.
Perfect for unbalanced line signals and consumer A/V equipment, the MacroMix can be used as a standalone solution or to extend the connectivity of a larger mixer.
Features

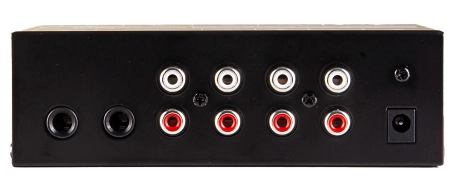

- Four input channels, Ch. 1 and 2 have dual L/R RCA inputs, with Ch. 3 you have a choice of one 1/4” or dual L/R RCA inputs and Ch 4 has a 1/4” unbalanced input

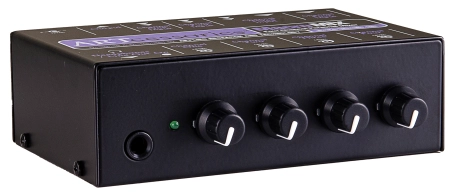

- Four Level controls, one for each channel
- Dual L/R RCA Output connectors
- 1/4” Line Out/Stereo Headphone output jack
- Active preamplification and mixing circuitry
Specifications
| Inputs | 1/4", RCA |
| Outputs | RCA |
| Input Impedance | 10K Ω |
| Maximum Gain | +40 dB |
| Total Harmonic Distortion | <0.008% |
| Signal to Noise Ratio | > 90dB |
| Power Requirements | 12 V DC |
| Dimensions (LWH) | 5.625" × 3.75" × 1.75" (14.3 cm x 9.2 cm x 4.5 cm) |
| Weight | 1.6 lbs (725 g) |
Specifications subject to change without notice
