HP-1
Battery-Powered Clip-On Headphone Amplifier
The HP-1 is a compact, battery-powered headphone amplifier for players who prefer a wired connection for their in-ear monitors.
It features a locking Combo input for XLR and 1/4 TRS connections, and an 1/8 headphone output with a volume control. The HP-1 is switchable for mono or stereo operation, and provides over 40 hours of performance from two AA batteries.
With a rugged enclosure and heavy-duty jacks, the HP-1 is built to withstand the rigors of the road and deliver clear, powerful, reliable sound.
Features

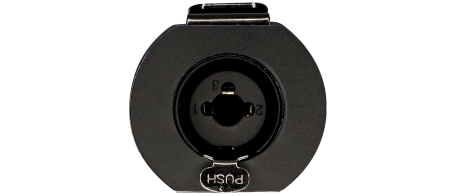

- Locking Combo Input Jack
- Balanced Mono / Unbalanced Stereo Switch

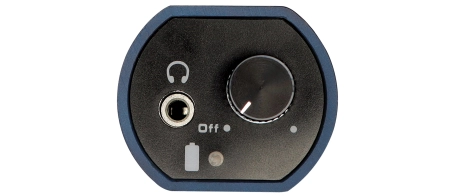

- 1/8" Headphone Output
- Over 40 Hours of Battery Life (2x AA)
- Battery Status LED
- Sturdy Belt Clip
Specifications
| Inputs | 1/4" /XLR combo jack |
| Outputs | 3.5mm Jack (1/8”) |
| Input Impedance | 5K Ω |
| Maximum Output Level | 105mW @ 0.1% THD |
| Maximum Gain | +9 dB |
| Total Harmonic Distortion | ≤ .02% @1kHz Typical. |
| Power Requirements | 2-AA batteries Included |
| Dimensions (LWH) | 1.6” x 72” x 5.4, (4.6 cm x 13.7 cm × 43.cm ). |
| Weight | 0.51 lbs. / 0.23kg |
Specifications subject to change without notice
