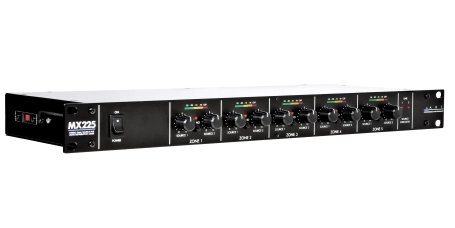

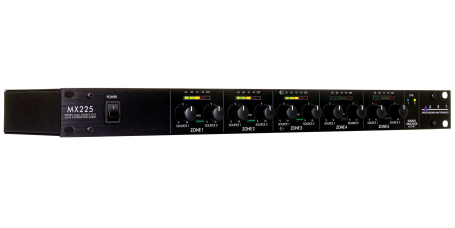

MX225
Stereo Dual-Source 5-Zone Distribution Mixer
The MX225 is our most affordable zone mixer.
It has two pairs of stereo inputs, and both sources can be independently mixed for each of the fine zone outputs. Each zone features level controls for each source, switchable mono or stereo operation, and an LED meter with a clip indicator.

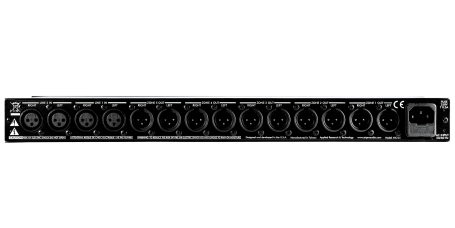

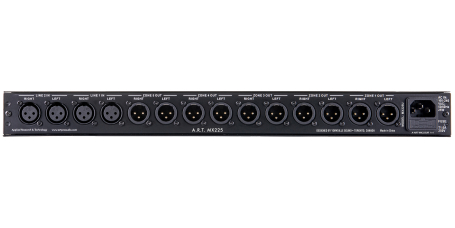

All inputs and outputs use balanced XLR connections, and the single-space enclosure with built-in power supply is easy to integrate into any rackmount system.
Flexible and easy to use, the MX225 is a streamlined solution for distributed audio in restaurants, conference rooms, houses of worship, and more.
Need a zone mixer with more inputs? Check out the MX524.
Features
- Left and right balanced Source 1 and 2 Inputs, accepts stereo or mono signal sources
- Source 1 and 2 input channels are internally routed to all five Zone channels Five Zone channels each feature Source 1 and 2 level controls and left and right balanced output XLR connectors
- Stereo/Mono selector on each zone sums left and right into Mono mode when engaged
- Mono indicator LED on each zone channel indicates that mono has been selected
- Five LED level metering (-25, -20, -15, -10, Clip) on each zone channel indicate signal activity for each zone
- Source 1 and 2 indicator LEDs show you when signal is present in each source channel
Specifications
| Inputs | 4x XLR |
| Outputs | 10x XLR |
| Input Impedance | 47k Ω |
| Output Impedance | 200 Ω |
| Maximum Input Level | +20 dBu |
| Maximum Output Level | +24 dBu balanced |
| Maximum Gain | +6 dB |
| Total Harmonic Distortion | .05% Typical |
| Signal to Noise Ratio | > 90dB typical |
| Power Requirements | USA – 105 to 125 VAC / 50-60Hz, 15 W typical |
| Dimensions (HWD) | 1.75″ x 19″ x 7.25" (4.45 cm x 48.3 cm x 18.4 cm) |
| Weight | 5.34 lbs / 2.42 kg |
Specifications subject to change without notice
