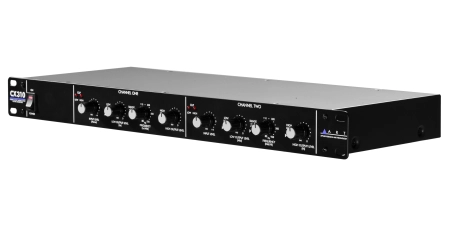

CX310
2-Way Stereo / 3-Way Mono Crossover
The CX310 is a versatile crossover with both 2-way stereo and 3-way mono modes.
It features Linkwitz-Riley filters to guarantee in-phase outputs at all frequencies. This ensures proper acoustic summing of common signals from adjacent drivers in the crossover region.
Each channel has discrete controls for input level, crossover frequency, and output level. The low and high outputs can be independently muted, and a range switch multiplies the frequency so you can set the crossover point between 80 Hz and 9.2 kHz.

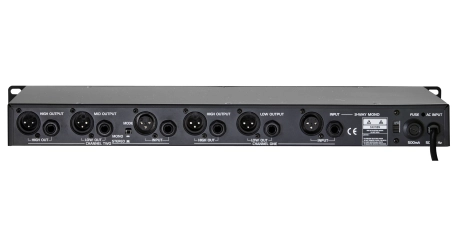

The rear panel has XLR and 1/4 connections for all inputs and outputs, and a switch to toggle mono or stereo operation.
Packed into a fully shielded 1U steel enclosure, the CX310 is a dependable, flexible solution for 2-way and 3-way PA systems.
Features
- Switchable 2-Way Stereo or 3-Way Mono Operation
- 80 Hz - 920 Hz or 800 Hz - 9.2 kHz Crossover Range
- Low and High Mutes per Channel
- Balanced XLR and 1/4" TRS Inputs and Outputs
- Low and High Clipping Indicators per Channel
- 1U Rackmount
Specifications
| Input Connections | 2x XLR, 2x 1/4" TRS (Balanced) |
| Output Connections | 4x XLR, 4x 1/4" TRS (Balanced) |
| Input Impedance | 20 kΩ |
| Output Impedance | 150Ω |
| Maximum Input Level | +13 dBu |
| Maximum Output Level | +21 dBu |
| Frequency Response | 10 Hz - 20 kHz (+0 / -1.5 dB) |
| Crossover Frequency Range | 80 Hz - 920 Hz or 800 Hz - 9.2 kHz |
| Crossover Filter Type | Fourth-Order Linkwitz-Riley, 24 dB / Octave, State-Variable |
| Dynamic Range | 118 dB |
| Signal to Noise Ratio | >85 dB |
| Total Harmonic Distortion | <0.05% (20 Hz - 20 kHz) |
| Maximum Gain | +4 dB |
| Power Requirements | 105 - 120V AC, 50 - 60 Hz, 3VA (USA) Export Units Configured for Country of Destination |
| Dimensions | 1.75” x 19” x 6.5” 4.4 cm x 48.3 cm x 16.5 cm |
| Weight | 7.1 lbs / 3.2 kg |
Specifications subject to change without notice
