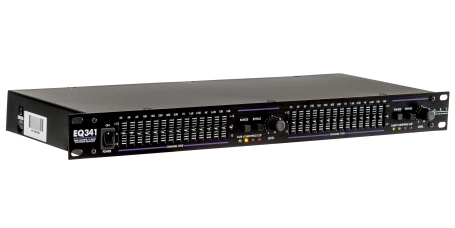

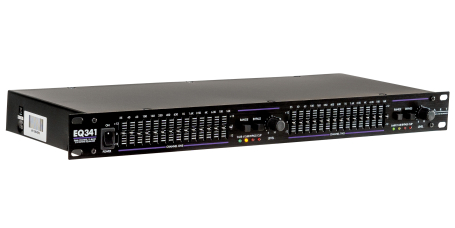

EQ341
Dual 15-Band Graphic EQ
ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.
The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals.

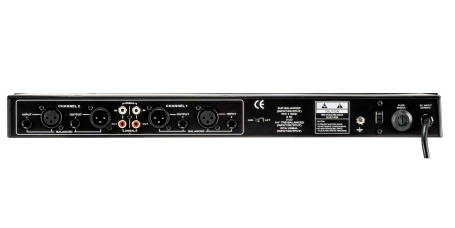

The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.
Looking for even more control? Check out the dual 31-band EQ355.
Features
- Dual 15-Band Graphic EQ
- 20mm Sliders with Centre Detent
- Switchable 6 dB or 12 dB Range
- Master Level Controls
- Balanced XLR and 1/4" TRS Inputs and Outputs
- Unbalanced RCA Input and Output
- 1U Rackmount
Specifications
| Channels | 2 |
| Bands per Channel | 15 (2/3 Octave, ISO Spacing) |
| Accuracy | +/- 3% of Centre Frequency |
| Sliders | 20 mm with Centre Detent |
| Range | +/- 6 dB or +/- 12 dB |
| Inputs | 2x Balanced XLR and 1/4" 2x Unbalanced RCA |
| Input Impedance | 20 kΩ (Balanced) 15 kΩ (Unbalanced) |
| Maximum Input Level | +22 dBm (Level Control at Centre) |
| Outputs | 2x Balanced XLR and 1/4" 2x Unbalanced RCA |
| Output Impedance Level | <150Ω (Typical) |
| Frequency Response | 20 Hz to 20 kHz (+/- 0.5 dB) |
| Signal to Noise Ratio | -94 dB |
| Total Harmonic Distortion | 0.01% |
| Channel Separation | >50 dB |
| Overload LED Threshold | 6 dB below Clipping (All Filters Flat) |
| Dimensions (HWD) | 1.75” x 19” x 5.5” 4.4cm x 48.3 x 14 cm |
| Weight | 4.85 lbs. / 2.2 kg |
Specifications subject to change without notice
