ISO-8U
Pedalboard Power Supply

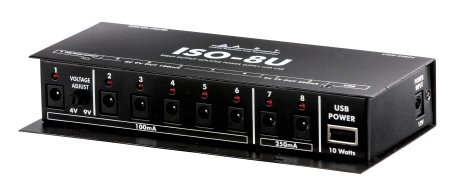

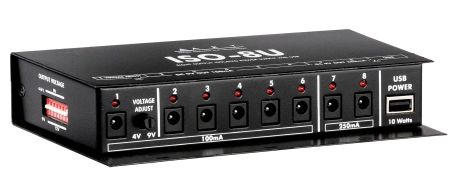

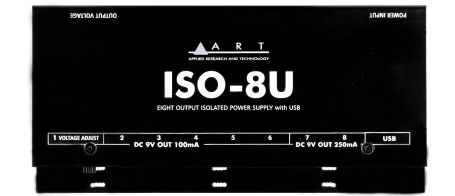

The ISO-8U is a compact pedalboard power supply with eight isolated DC outputs and a 10-watt USB port.
Six outputs provide 100 mA, two provide 250 mA, and all have two selectable modes. Output 1 can deliver a fixed 9 volts or variable output down to 4 volts, for the "low battery" effect that can change the response of analog pedals. Try it with your favourite fuzz! The other outputs can switch between 9 and 12 volt operation for pedals that can accept higher voltage for increased headroom.
It comes with a variety of cables, including a battery clip, reverse polarity, and Y cable for connecting two outputs to a pedal that requires 18 or 24 volts.
The metal enclosure has recessed sides to protect controls and connections, and cable tie cutouts for neat and secure wiring.
The ISO-8 provides clean, noise-free power and flexible features so you can get the best out of your favourite stompboxes.
Features
- 8x Isolated DC Outputs (6x 100 mA, 2x 250 mA)
- 10-Watt USB Port
- Output 1 Provides Fixed 9V or Variable 4V - 9V

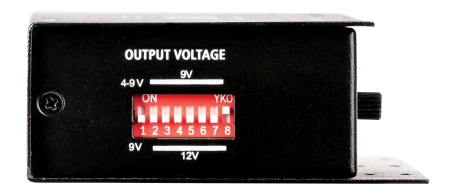

- All Other Outputs Switchable between 9V and 12V

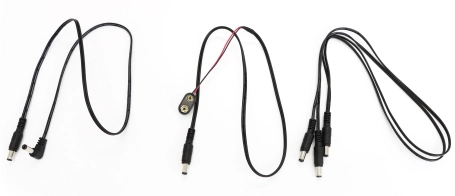

- Comes with 12 Cables Including Battery Clip, Polarity Reversal, and Y Adapter
- Metal Chassis with Tie Wrap Slots
Specifications
| Outputs | 8x 2.1mm x 5.1mm barrel connection, negative tip 1x USB Cables Provided: |
| Power Requirements | 85 - 240 VAC-50/60 hz - 30 W universal power supply |
| Dimensions | 1.33-" x 6.8" x 2.8" (3.4 cm x 17.27 cm x 7.11 cm) |
| Weight | .61 lbs / .28 kg |
Specifications subject to change without notice
