Digital MPA-II
2-Channel Tube Preamp with Digital Connectivity

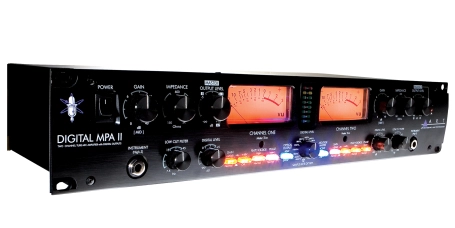

The Digital MPA II is a two-channel preamp with streamlined controls and real tube tone in a 2U rackmount enclosure. It offers the features and sound of the Pro MPA II, with extended connectivity for any digital recording setup.

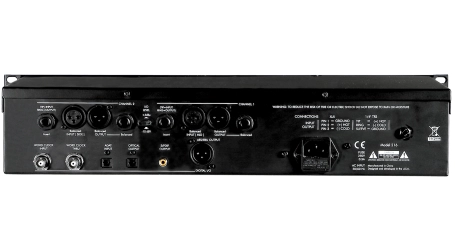

In addition to the analog XLR and 1/4 connections, it features AES/EBU, S/PDIF, and optical outputs. It also features an optical input and word clock input and thru jacks. Sample rate and dither is set by a rotary control on the front panel.
Simple to use and easy to integrate, the Digital MPA II offers classic tube warmth for the modern studio.
Features
- Variable Input Impedance For Flexible Microphone Voicing (150 ohms To 2400 ohms)
- Selectable Plate Voltage
- Large VU Meters
- Backlit Function Switches
- Discrete Class-A Input Microphone Preamplifier
- Low Noise at Lower Gain Settings
- Extremely Low Total Harmonic Distortion (THD)
- Wide Frequency Response
- Additional Front Mounted Instrument Input Jack
- Supports Mid/Side Miking Technique
- Operates at +4dbm/-10dbv Output
- Selectable Stereo/Dual Operation of Output Controls
- Automatic Instrument Input Selection
- 24-204KHz External sample rate
- 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
- 24/16 bit switchable dithering
- Wide dynamic range A/D
- Rotary Encoder for quick selection of sample rate
- Separate analog and digital output level controls
- Digital Level LED meters display both Average and Peak level
- ADAT optical I/O
- Sync to incoming ADAT data rate
- Switch selectable optical output (S/PDIF or ADAT)
- AES/EBU and S/PDIF outputs
Specifications
| Input Impedance | 150-3000 (Omega) Adjustable (XLR), >800k (Omega) (Instrument) |
| Output Impedance | < 47 (Omega) (XLR) |
| Maximum Input Level | +19 dBu (Cannon) |
| Maximum Output Level | +27 dBu (XLR) |
| Maximum Gain | 75 dB |
| Frequency Response | 15 Hz to 48 kHz (+0, -1 dB) @ Normal Plate Voltage 15 Hz to 120 kHz (+0, -1 dB) @ High Plate Voltage |
| Total Harmonic Distortion | <0.005% (Typical) |
| Equivalent Input Noise | -129 dBu (XLR, “A” Weighted) |
| CMRR | >90dB |
| Power Requirements | USA – 105 to 125 VAC / 60 Hz Export Units Configured forCcountry of Destination |
Specifications subject to change without notice
