Dual RP
2-Channel Remote Preamp

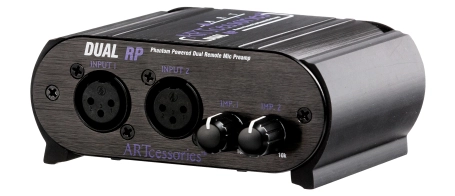

The Dual RP is a two-channel remote preamp designed for dynamic and ribbon microphones.
It has three main advantages. Firstly, it adds up to 28 dB of clean, low-noise gain, so its an ideal solution for low-output mics.
Secondly, it offers variable impedance on both channels, so you can tailor the preamp response to each microphone for additional tonal flexibility.
Thirdly, it shortens the distance between the mic and preamp. This lets you minimize interference and signal loss by sending balanced signals over long cable runs to your mixer or interface.
The Dual RP runs on phantom power but does not pass it, so its safe to use with delicate ribbon mics. It also features a switchable high-pass filter on each channel that cuts low frequencies to remove rumble and tighten bass.
Just need a single channel in an ultra-compact enclosure? Check out the RP-1.
Features
- Switchable low cut filter
- 100 Hz low cut filter
- Variable impedance control (150 ohms – 10k ohms)
- Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
- Runs off +48V Phantom power supply
- Low THD discrete circuitry (<0.002% @ 1kHz typ.)

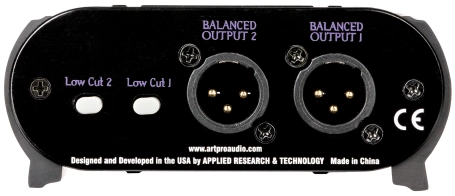

- Balanced outputs
Specifications
| Inputs | 2x XLR |
| Outputs | 2x XLR |
| Input Impedance | 150 Ω to 10 k Ω, variable |
| Maximum Input Level | -18 dBu |
| Maximum Output Level | +1 dBm (600 Ω Load) / +9 dBu (10 k load) |
| Maximum Gain | 20 dB @600 Ω load, +27 dB @ 10 k load |
| Total Harmonic Distortion | < .002% @1 kHz typ. |
| Equivalent Input Noise | -129 dBu “C” wtd. |
| CMRR | >60 dB 20 - 20 kHz |
| Power Requirements | External Power requirements Standard 48V Phantom power supply |
| Dimensions (HWD) | 1.85" x 4.6" x 3.9" (4.7 cm x 11.7 cm x 9.9 cm) |
| Weight | 0.71 lbs / 0.32 kg |
Specifications subject to change without notice
