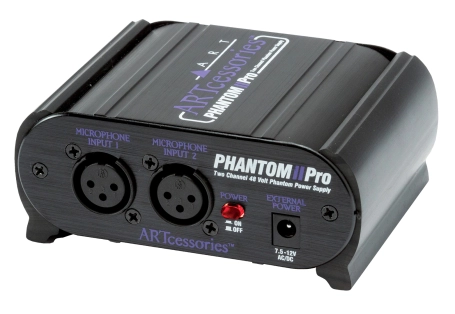

Phantom II Pro
Dual Phantom Power Supply
The Phantom II Pro delivers two channels of 48-volt phantom power in a compact enclosure. It can be powered by a 9-volt battery or external adapter (not included).
It features innovative low-power circuitry that provides over 10 hours of battery life under a full load on both channels. Its a great solution for mobile recording, especially with a bus-powered interface.
Features

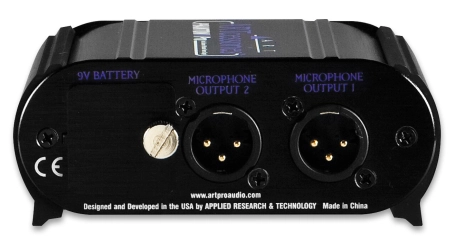

- XLR connectors for balanced inputs and outputs
- Low power, high efficiency CMOS circuitry for Long battery life using a standard 9 Volt battery (Alkaline recommended)
- Can be powered with an external power supply for operation from AC mains
- Rugged extruded aluminum case with accessible battery compartment
- LED lighted On/Off switch
- Low noise, low distortion circuitry
Specifications
| Inputs | 2x XLR |
| Outputs | 2x XLR |
| Power Requirements | 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) or external supply 7.5-12 V AC/DC, Any Polarity, <150 mA |
| Dimensions | 1.85″ x 4.6″ x 3.9″ (4.7 cm x11.7 cm x 9.9 cm) |
| Weight | .82 lbs / .37 kg |
Specifications subject to change without notice
