DTI
Dual Transformer / Isolator
"I was so impressed that the DTI is now permanently in my problem-solving kit box. Highly recommended." - Sound on Sound (Link)

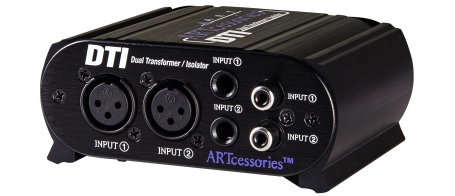

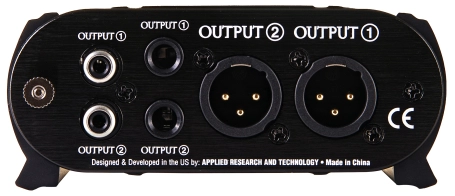

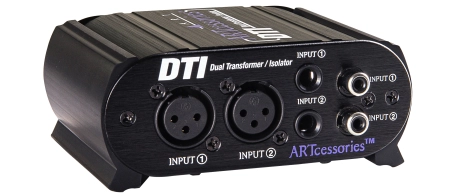

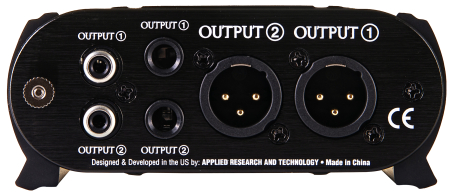

The DTI Dual Transformer / Isolator uses a pair of high-performance transformers to reduce hum and ground loop noise, separating the input and output signal grounds for total isolation between two systems.
The transformers are wound for 1:1 unity gain, and have an extremely flat and wide frequency response. Even at high signal levels, they provide clean, transparent sound.
With XLR, 1/4” TRS, and RCA connectors on all inputs and outputs, the DTI is flexible and easy to integrate. Featuring a rugged aluminum enclosure and a passive design that doesn’t require external power, the DTI is built for years of reliable use.
Need a rackmount solution with more channels? Check out the T8.
Features
- 2x XLR Inputs and Outputs
- 2x 1/4" Inputs and Outputs
- 2x RCA Inputs and Outputs
- 10 Hz - 50 kHz Frequency Response
- 0.01% THD (Typical at 1 kHz, +18 dBU)
- Passive Design - No Power Required
Specifications
| Active or Passive | Passive |
| Inputs | 2x Balanced XLR 2x Balanced / Unbalanced 1/4" TRS 2x RCA |
| Outputs | 2x Balanced XLR 2x Balanced / Unbalanced 1/4" TRS 2x RCA |
| Frequency Response | 10 Hz - 50 kHz (+/- 0.5 dB @ +4 dBu) |
| Total Harmonic Distortion | 0.01% (Typical @ 1 kHz, +18 dBu) < 0.05% @ 100 Hz, +24 dBu |
| Insertion Loss | 0.4 dB (100 kΩ Load) 5.5 dB (600Ω Load) |
| Dimensions (HWD) | 3.5" x 4.2" x 1.75" 8.9 cm x 10.7 cm x 4.45 cm |
| Weight | 0.75 lbs / 340 g |
Specifications subject to change without notice
