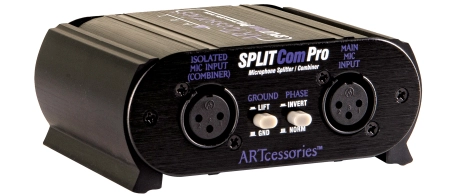

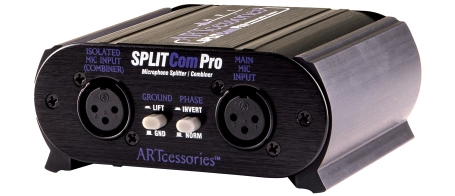

SplitComPro
Mic Splitter / Combiner
The dual-purpose SplitComPro can feed two outputs from one microphone input, or combine two mic inputs to a single output.

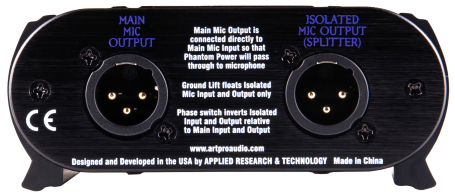

It features a main output that passes phantom power for use with active microphones, and an isolated second output. This lets you send a signal to both front-of-house and monitor or recording mixers, record a safety track at a lower volume in case of clipping, or use parallel signal chains for creative processing.
If you have more microphones than mixer channels, the SplitComPro also has an isolated second mic input. A switch inverts the polarity of this input to ensure phase coherence when both mic signals are combined.
With a passive design that doesnt require external power, a ground lift switch to reduce ground hum, and a durable metal chassis, the SplitComPro is a compact and versatile tool that adds flexibility to your signal flow.
Features
- Split 1 Mic to 2 Outputs or Combine 2 Mic Inputs
- Balanced XLR Connections
- 1x Main and 1x Transformer-Isolated Mic Input and Output
- Main Output Passes Phantom Power
- Switchable Ground Lift and Phase Invert for Isolated Input
- Passive Design - No Power Required
Specifications
| Output Impedance | 1 kΩ |
| Frequency Response | 20 Hz - 150 kHz (+/- 0.2 dB @ 0 dBu) |
| THD | < 0.0007% (20 Hz - 20k Hz, 0 dBu Input) |
| Phase Shift | < 10° @ 20 kHz - 150 kHz (Reference 1 kHz) |
| Typical Driving Source Dist. | 150Ω |
| Dimensions (DWH) | 3.5" x 4.6" x 1.85" 89 mm x 117 mm x 47 mm |
| Weight | 0.75 lbs / 340 g |
Specifications subject to change without notice
