TPatch
8-Point Balanced Patchbay

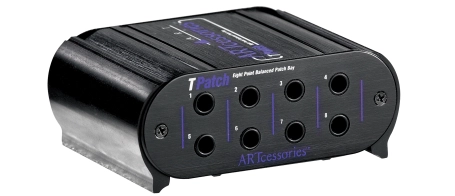

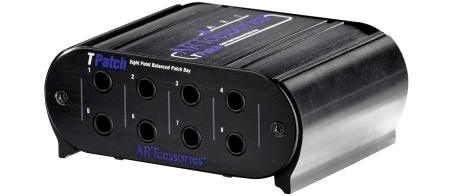

The TPatch is a compact desktop solution to simplify connecting and re-routing signals in your studio or live setup.
Its an 8-point patchbay, which means there are 4 channels of linked inputs and outputs, all with balanced 1/4 TRS connections.

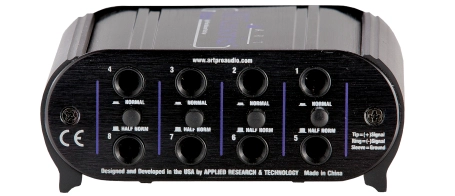

Each channel can switch between normal and half-normal operation. In normal operation, connecting the front output will break the connection between the rear input and output. In half-normal operation, the rear connection remains unbroken so you can split the signal to a second destination.
It adapts quickly and easily to your workflow. Unlike some patchbays which require that you physically flip channel modules, the TPatch has a button on each channel to change between normal and half-normal operation.
The TPatch features a rugged aluminum chassis, a passive design so no power is required, and high-quality connectors for long-term reliability.
Need more connections? Check out the rackmount P48.
Features
- 4 Channels of Linked Input / Output Pairs
- 1/4" TRS Connections
- Switchable between Normal and Half-Normal Operation per Channel
- Passive Design - No Power Required
Specifications
| THD | >-90 dB (Typical) |
| Isolation | >-80 dB (Typical) |
| Dimensions (DWH) | 3.9" x 4.6" x 1.85" 99 mm x 117 mm x 47 mm |
| Weight | 0.84 lbs / 381 g |
Specifications subject to change without notice
