SCC
Monitor Controller
The SCC Studio Control Center adds versatility to your recording setup when working with multiple sets of studio monitors.

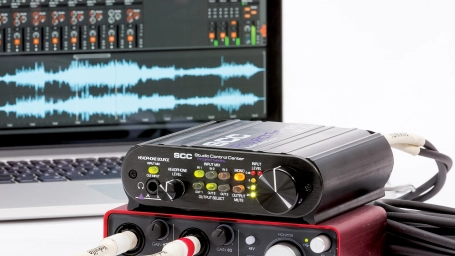

Connect it between your audio interface and speakers, and send a mix of up to three stereo inputs to any or all of three stereo outputs. Its perfect for checking reference tracks, switching between monitors, and adding or removing a subwoofer.
The SCC features a large master volume knob, mono summing, input level metering, and an output mute. The headphone output has an independent volume control and a selectable input source, so you can quickly change between the playback and monitor mixes for easy reference.

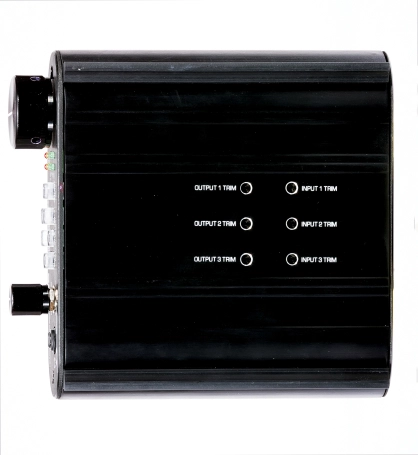

Pots on the bottom of the unit let you trim the gain of all three input and output pairs for proper gain-staging and balanced volume between speaker pairs.
Compact and intuitive, the SCC extends the functionality of your interface and studio monitors with flexible routing and tactile controls.
Features
- Select up to 3 Stereo Input Sources
- Select up to 3 Stereo Outputs
- Large Master Volume Control
- Input Level Meter
- Input and Output Trim Controls
- Mono Switch and Output Mute
- Headphone Output with Source Select and Level Control
- 9V AC Adapter Included
Specifications
| Active or Passive | Active (9V AC @ 1000 mA) |

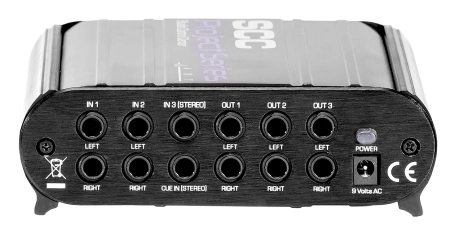

| Inputs | 4x Balanced 1/4" TRS (In 1 L/R, In 2 L/R) 2x Unbalanced 1/4" TRS Stereo (In 3, Cue In) |
| Outputs | 6x Balanced 1/4" TRS (Out 1 L/R, Out 2 L/R, Out 3 L/R) 1x 1/4" TRS Stereo Headphone |
| Frequency Response | 10 Hz - 100 kHz (+/- 0.5 dB) |
| Maximum Input Level | +21 dBu Balanced +20 dBu Unbalanced |
| Maximum Output Level | +18 dBu Balanced (Out 1 - 3) 100 mW x2 @ 100Ω (Headphones) |
| Input Impedance | 9 kΩ Balanced (In 1, In 2) 5 kΩ Unbalanced (In 3, Cue) |
| Equivalent Input Noise | ≤ -96 dBu (Balanced Inputs) ≤ -102 dBu (Cue Input) |
| Maximum Gain | +23 dB (Balanced In - Out) +20 dB (Cue Input to Headphone Output) |
| Total Harmonic Distortion | < 0.004% @ 20 Hz -20 kHz |
| CMRR | > 50 dB |
| Dimensions (DWH) | 6.5" x 5.9" x 1.75" 16.5 cm x 15 cm x 4.45 cm |
| Weight | 2.5 lbs / 1.14 kg (Packaged) |
Specifications subject to change without notice
