SP4X4 PRO USB
Power Distribution System

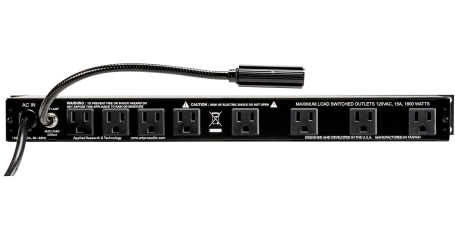

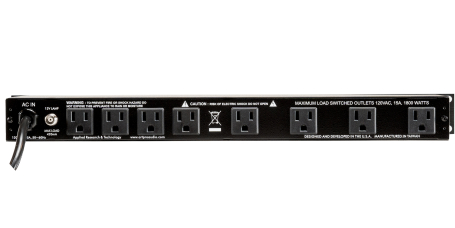

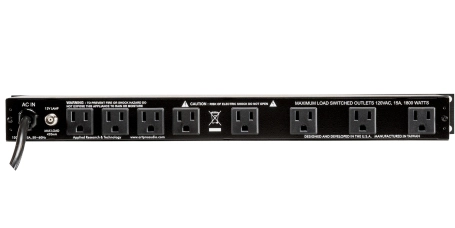

The SP4x4 Pro USB features eight rear AC outlets, four of which are widely spaced to accommodate large power supplies, with surge and spike protection to keep your equipment safe.

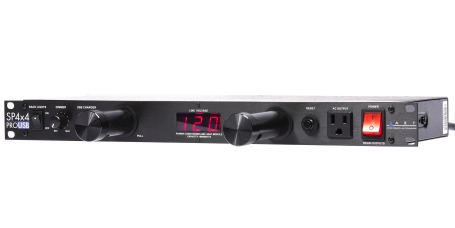

The SP tier has a digital meter to monitor input voltage, and two pull-out front LED lamps with a variable dimmer and discrete power switch.
Pro USB models add an unswitched front AC outlet, two 5-volt USB ports, a rear gooseneck lamp, and our Advanced Power Filtering (APF) module.
APF filters digital and dimmer hash, and any high-frequency noise above the audio range. The custom filter design blocks virtually all unwanted signals between the AC line and ground. This augments the EMI and RFI filtering found in every ART rackmount power supply, providing our most sophisticated power conditioning.
Power your rig with a convenient single switch and give your equipment the protection it deserves.
Features
- 8x Rear AC Outlets, 1 Unswitched Front Outlet
- 2x 5V USB Ports
- Surge and Spike Protection
- EMI and RFI Filtering
- Advanced Power Filtering (APF)
- Digital Input Voltage Meter
- 2x Pullout Front Lamps

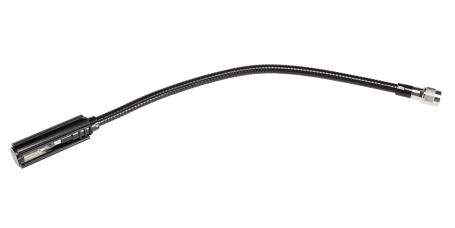

- Rear Gooseneck Lamp
- 1U Rackmount
Specifications
| Features | EMI & RFI Filtering Surge & Spike Protection 2 Front Pull-Out Shock Mounted Light Pipes w/dimmer Input Voltage and Current Metering Rear Mounted Gooseneck Light Source APF – Advanced Power Filtering |
| Outputs | 8x Rear Outlets 1x Front Outlet 5V/3.1A (OVP&OCP) USB Chargers |
| Enclosure | All-Steel Chassis |
| Dimensions | 1.75” x 19” x 6.5” (4.5 cm x 48.26 cm x 16.5 cm) |
| Weight | 6.3 lbs / 2.8 kg |
Specifications subject to change without notice
