HEADAMP 6 PRO
6-Channel Headphone Amplifier
The HeadAmp 6 Pro is ARTs most fully-featured headphone amplifier. It has six channels with flexible controls, detailed metering, and two outputs per channel, so up to twelve sets of headphones can be connected simultaneously.
Each channel features an independent auxiliary input with a balance control, so its easy to dial in a more me mix. Additional switches mute the left or right signal and sum the channel to mono, so listeners have the control to hear exactly what they need.

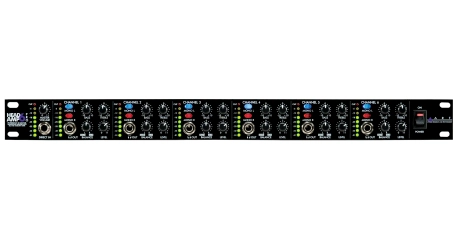

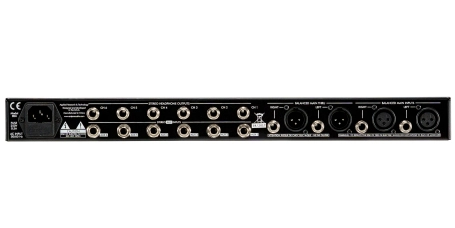

The main signal bus and output channels feature 8-segment LED meters with clip indicators for detailed visual feedback. The rear panel has balanced XLR and 1/4 inputs, and Thru connectors to chain multiple units for even more outputs. A Direct input on the front panel overrides the rear signal, so you can easily switch sources without getting behind the rack.
The HeadAmp 6 Pro offers the most control of any ART headphone amplifier, and is ideal for working with medium to large ensembles.
Features
- 6x Output Channels
- Stereo XLR and 1/4" XLR Balanced Inputs
- 1/4" Direct In Overrides Rear Inputs
- 2x 1/4" Headphone Outputs per Channel
- Supports up to 12 Pairs of Headphones
- Aux In with Main / Aux Balance per Channel
- Mono L and Mono R Switches per Channel
- 2-Band EQ per Channel
- LED Meters with Clip Indicators for Main Bus and Output Channels
- 1U Rackmount
Specifications
| Inputs | XLR, 1/4" |
| Outputs | 1/4" |
| Maximum Input Level | +20 dBu |
| Frequency Response | 10 Hz to 40 KHz +/- 1 dB |
| Total Harmonic Distortion | <0.010% (Typical) |
| Power Requirements | 120 vac 60 Hz |
| Dimensions (LWH) | 6.5″x 5.9″ x 1.75″, 16.5cmx 15.0 cm x 4.45 cm |
| Weight | 2.5 lbs. (1.14 kg) |
Specifications subject to change without notice
