USB Phono Plus PS
Phono Preamp and Audio Interface

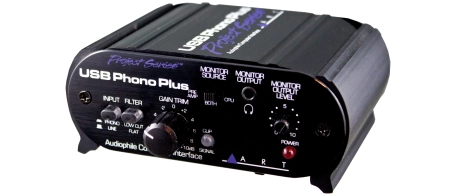

The USB Phono Plus is a complete hardware solution for making digital recordings from your records.
ART has decades of experience in designing phono preamps, and the USB Phono Pre offers the great sound, low noise, and essential features that have established the DJ Pre II as one of our most popular products.

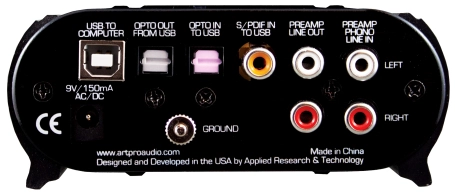

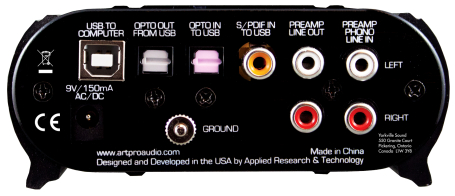

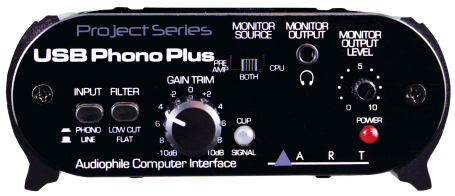

It adds extended digital connectivity and an integrated USB audio interface. In addition to stereo RCA inputs and outputs, it features S/PDIF and optical inputs, plus an optical output. Connect the USB port to your computer and record better than CD-quality sound to any digital audio workstation software. The headphone output lets you monitor the preamp input, the computer playback, or both together, and has an independent level control so you can adjust your listening volume without affecting the recording.
ART knows recording and knows vinyl, and that combined expertise has produced a compact and convenient interface thats purpose-built for preserving your record collection.
Features
- Powered by external power supply or directly via USB port
- Fully compliant with the USB 2.0 specification and uses USB adaptive mode for playback and USB asynchronous mode for record.
- Works with Windows 98SE/ME/2000/XP/Vista/7 USB audio device drivers as well as Apple OS9.1/OS-X computers with native USB support.
- USB Phono Plus ships with Audacity
- Housed in an all aluminum black anodized case
Specifications
| Inputs | Analog - RCA (preamp / phono/line) |
| Outputs | Analog - RCA (preamp line) |
| Input Impedance | 47k Ω / 100pf (phono), 270k Ω (line) |
| Maximum Input Level | 40 mV rms @ 1 kHz (phono), +19 dBu (line) |
| Maximum Output Level | +6 dBu (1.4V rms) |
| Maximum Gain | 45 dB @ 1 kHz (phono), 6 dB (line) |
| Frequency Response | 10 Hz – 50 kHz, +/- 0.5% |
| Total Harmonic Distortion | <0.01% typical @ 1 kHz |
| Connectivity | USB Class compliant plug-and-play Mac and PC interface |
| Resolution | 16 bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz |
| Enclosure | All aluminum black anodized with integral rubber sides |
| Power Requirements | USB bus powered or 7-12V DC or 9-12V AC @ 150 mA (external) Either polarity of the tip will work with DC power |
| Dimensions | 1.85" x 4.6" x 4.5" (4.7 cm x 11.7 cm x 11.4 cm) |
| Weight | 1.35 lbs / 0.61 kg |
| Note | 0 dBu = 0.775Vrms |
Specifications subject to change without notice
