Tube MP PS with USB
Tube Preamp and Audio Interface
With an integrated USB audio output, this Tube MP is designed for standalone digital recording. Its a convenient mobile solution when you're away from your primary interface, letting you connect to your DAW to record a 16-bit signal at 44.1 or 48 kHz and capture your ideas.

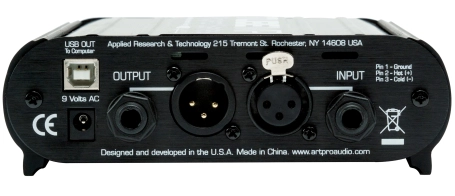

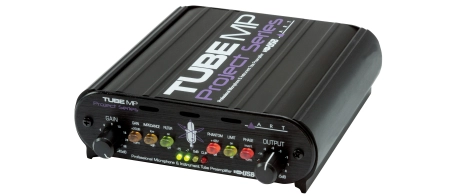

Its otherwise identical to the standard Project Series model, beginning with the 12AX7A tube at the heart of the preamp circuit for warming microphone or instrument signals. It features XLR and 1/4 connections, switchable boost and mic impedance, phantom power, phase reversal, FET limiting, and LED metering.
Need a multi-channel compact interface? Check out the USB II and USB IV.
Features
- USB Interface Output
- Extremely Low Noise Discrete Front End
- Up to 70dB of Clean, "Musical" Gain
- High Output Signal Drive Capability
- Fast FET Limiter to Prevent Overload
- Switch Selectable Input Impedance
- Precision LED Metering
- Built-in Low Noise Phantom Power Supply
- Compact, Stackable all Aluminum Chassis
- XLR and 1/4" Inputs and Outputs
- Phase Invert Switch
- High Cut Filter Switch
- Variable Input and Output Controls
- Windows 98SE/ME/2000/XP/Vista Compatible
- Compatible with Mac OS 9.1 and newer
Specifications
| Maximum Input Level | +17 dBu (1/4”), +16 dBu (XLR) |
| Maximum Output Level | +20 dBu (1/4”), +26 dBu (XLR) |
| Maximum Gain | 0 dB (XLR - XLR), +50 dB (1/4”- XLR) |
| Frequency Response | 10 Hz – 40 KHz, +/-1 dB (Typical) |
| Total Harmonic Distortion | <0.05% (Typical) |
| Equivalent Input Noise | <-130dB (XLR to XLR A-Weighted) |
| CMRR | >60dB (Typical) |
| Phantom Power | Switchable, +48 V DC, Filtered, Current Limited |
| Power Requirements | 10 Volts AC @ 700 mA (Typical) |
| Dimensions | 1.75” H x 5.9” W x 6.5 ”D (4.45 cm x 150 cm x 16.5 cm) |
| Weight | 2.5 lbs. (1.14 kg) |
Specifications subject to change without notice
