USB DI
USB Direct Box
Need to get audio from a computer to a mixer or PA? The USB DI offers high-quality digital-to-analog conversion and balanced XLR outputs, providing a pristine signal to any analog sound system.
Custom output transformers isolate the digital and analog elements, eliminating ground loops and system noise.

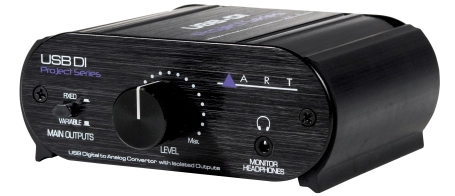

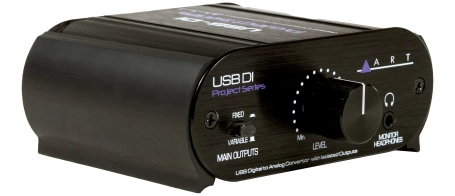

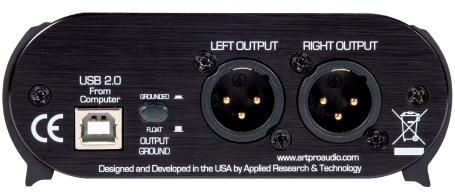

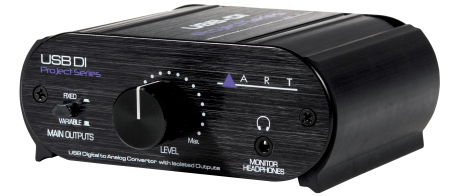

A front panel switch selects between a fixed volume at the main outputs or variable adjustment with the Level knob, which also controls the headphone output. A ground lift switch on the rear panel engages an extra layer of hum protection.
The USB DI is class-compliant and bus-powered, so it doesn’t require driver software or an external power supply.
Looking to connect Bluetooth® audio? Check out the BT-DI.
Features
- USB 2.0 Connection
- Supports 32 kHz, 44.1 kHz, and 48 kHz Sample Rates
- Transformer-Isolated XLR Outputs
- Fixed or Variable Main Output Level
- Level Control Adjusts Monitor or Main + Monitor Volume
- Switchable Ground Lift
- Class Compliant
- Bus Powered
Specifications
| Active or Passive | Active |
| Inputs | USB 2.0 (Type B Connector) |
| Outputs | 2x XLR 1x 1/8" TRS Headphone |
| Maximum Output Level | +.75 dBu (Variable Output Mode) -1.5 dBu (Fixed Output Mode) |
| Controls | Fixed / Variable Output, Level, Ground Lift |
| Frequency Response | 20 Hz - 20 kHz +/- dB |
| Supported Sample Rates | 32 kHz, 44.1 kHz, 48 kHz |
| Dynamic Range | 96 dB A-Weighted (Typical) |
| Total Harmonic Distortion | <0.02% (Typical) |
| Power Requirements | USB Bus Powered, 500 mA Max |
| Dimensions (HWD) | 1.87" x 4.61" x 4.27" (4.75 cm x 11.7 cm x 10.8 cm) |
| Weight | 1.89 lbs / .86 kg (Packaged) |
Specifications subject to change without notice
