DualZDirect
2-Channel Passive Direct Box

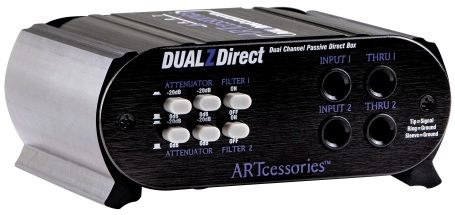

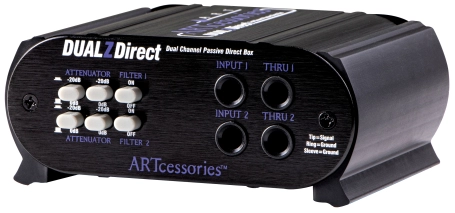

The DualZDirect is a 2-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage.

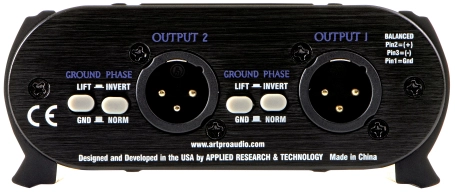

Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum, and invert the signal polarity to resolve phase issues, such as those which can occur when combining DI and mic sources.
As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.
Simple and durable, the DualZDirect is a compact DI in a rugged aluminum enclosure with two indpendent channels and a versatile feature set.
Features
- 2 Independent Channels
- 1/4" TRS Inputs and Thru Connectors
- Balanced XLR Outputs
- Switchable Attenuation (-20 dB, -40 dB) per Channel
- Switchable Low-Pass Filter, Ground Lift, and Phase Invert per Channel
- Passive Design - No Power Required
Specifications
| Active or Passive | Passive |
| Inputs | 2x 1/4" TRS |
| Outputs | 2x XLR 2x 1/4" TRS Thru |
| Input Impedance | 50 kΩ |
| Output Impedance | 600Ω |
| Controls | Attenuator (0 dB, -20 dB, -40 dB) Filter Ground Lift Phase Invert (All per Channel) |
| Filter | 30 kHz Low-Pass |
| Frequency Response | 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu |
| Total Harmonic Distortion | .01% @ 1 kHz, +18 dBu (Typical) <.05% @ 100 Hz, +18 dBu |
| Channel Separation | >80 dB (Typical) |
| Dimensions (HWD) | 1.85" x 4.6" x 3.9", 4.7 cm x 11.7 cm x 9.9 cm |
| Weight | 0.88 lbs / 400 g |
Specifications subject to change without notice
