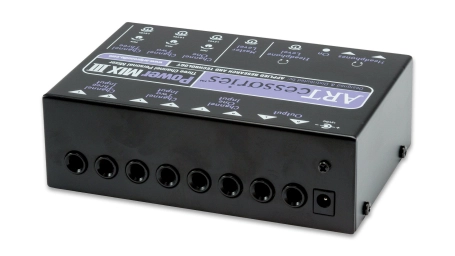

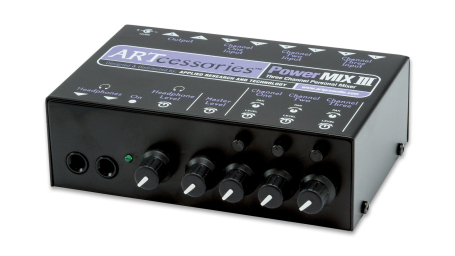

POWERMIX III
3-Channel Stereo Mini Mixer
The PowerMix III is a three-channel line mixer.
Each channel has dual 1/4” inputs that can accept mono or stereo sources, and controls for level and panning. There’s a master level control for the main outputs, and a shared level control for the two headphone jacks.
It’s a compact mixing and submixing solution for synths, sound modules, media players, and other line sources.
Features
- Three input channels each with their own pan and level controls
- Three sets of 1/4” left and right unbalanced inputs
- The Right inputs may be used for mono signals
- A Master Level control regulates all 3 channels
- Left and Right unbalanced 1/4” Outputs
- The Headphone channel features dual, stereo 1/4” outputs so that two headsets can be connected at once
- The Headphone Level control regulates both outputs
Specifications
| Inputs | 1/4" |
| Outputs | 1/4" |
| Input Impedance | 10K Ω |
| Output Impedance | 100 Ω |
| Maximum Input Level | +30 dB |
| Maximum Output Level | +13 dB |
| Maximum Gain | +27 dB |
| Total Harmonic Distortion | <0.005% |
| Power Requirements | 12 V DC |
| Dimensions (HWD) | 5.75" × 4.4" × 1.75" (14.6 cm x 11.2 cm x 4.4 cm) |
| Weight | 2 lbs (0.9 kg) |
Specifications subject to change without notice
