S8-3Way

8-Channel 3-Way Mic Splitter

Find A Dealer

The S8-3Way lets your mic signals be in three places at once.

It's an 8-channel splitter in a 1U rackmount enclosure with one direct output and two transformer-isolated outputs per channel. The passive design doesn't require power, but the direct outputs will pass phantom power for use with active microphones.

When three outputs are better than one, the S8-3Way is ideal for sending signals to multiple destinations, such as front-of-house, monitor, and broadcast or recording mixers.

Need switchable input pads and ground lifts per channel? Check out the S8.

Features

  • 8-Channel 3-Way Splitter
  • Balanced XLR Connections
  • 1x Direct and 2x Transformer-Isolated Outputs per Channel
  • Direct Outputs Pass Phantom Power
  • Passive Design - No Power Required
  • 1U Rackmount
  • Reversible Rack Ears

Specifications

Input Impedance > 1.1 kΩ @ 1 kHz
Typical Driving Source Impedance is 150Ω
Output Impedance < 255Ω @ 1 kHz
1 kΩ Typical Output Load Impedance
Frequency Response 20 Hz - 20 kHz (+/- 0.25 dB @ -15 dBu)
THD < 0.26% (20 Hz - 20 kHz, -15 dBu Input)
< 0.1% (45 Hz - 20 kHz, -15 dBu Input)
0.002% Typical @ 1 kHz (-15 dBu Input)
CMRR > 105 dB @ 60 Hz
> 80 dB @ 3 kHz
Phase Shift <10° @ 20 kHz (Reference 1 kHz)
Insertion Loss ~2 dB @ 1 kHz
Dimensions (DWH) 3.75" x 19" x 1.75"
95 mm x 483 mm x 44 mm
Weight 3.75 lbs / 1.7 kg

Specifications subject to change without notice

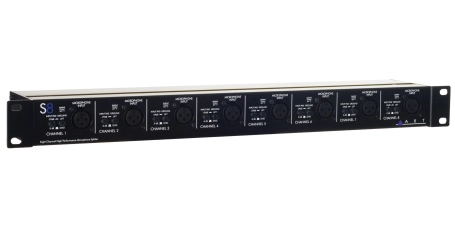

image 1 S8-3Way 8-Channel 3-Way Mic Splitter

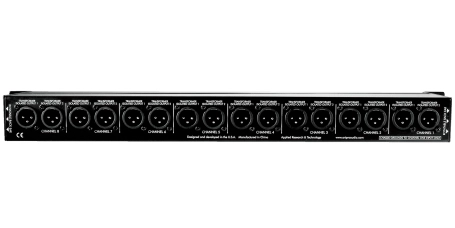

 image 2 S8-3Way 8-Channel 3-Way Mic Splitter

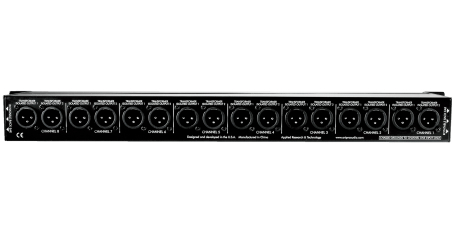

 image 3 S8-3Way 8-Channel 3-Way Mic Splitter
